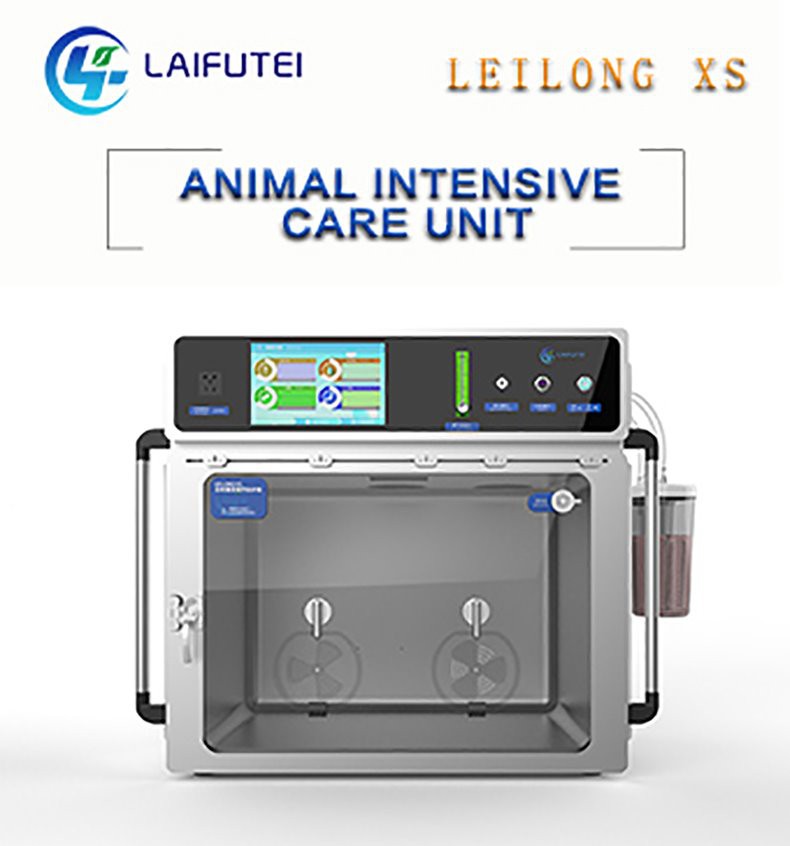

Animal Intensive Care Unit
Product Model: LEILONG XS
Input voltage: AC100V/220V~
Frequency: 50/60 Hz
Temperature control mode: One chamber independent split cooling /PTC heating.
Description

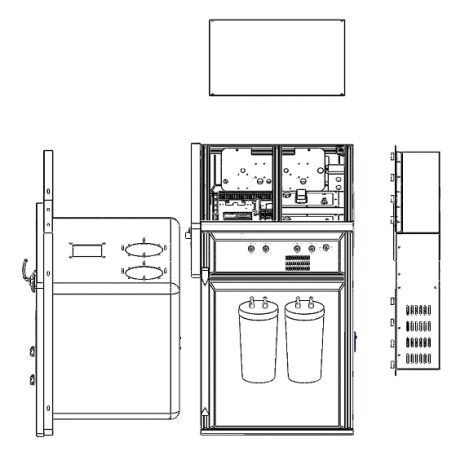

ICU host diagram

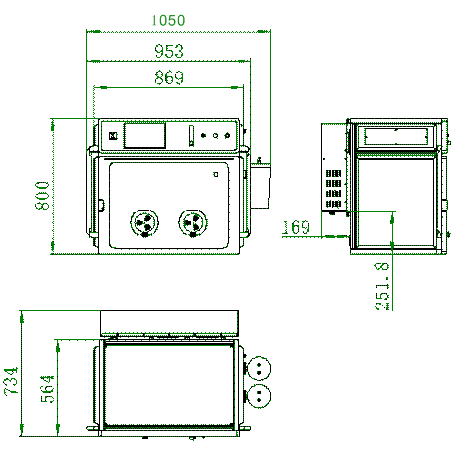

ICU size chart
| MODEL | SIZE | WEIGHT | INPUT VOLTAGE | HZ | RARED POWER |
OPERATION TEMPERATURE
|
RALATIVE HUMIDITY | AIR PRESSURE | USE |
| LEILONG XS |
105CM×75CM×82CM
|
90KG |
AC220V~
|
50/60
|
500W
|
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM PET |
| LEILONG SE |
98.5CM×78.5CM×74.5CM
|
80KG |
AC220V~
|
50/60
|
500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM PET |
| LEILONG XL |
135CM×105CM×92CM
|
150KG |
AC220V~
|
50/60
|
500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM/BIG PET |
| LEILONG LXL |
135CM×180CM×92CM
|
250KG |
AC220V~
|
50/60
|
1000W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM/BIG PET |
| LEILONG SSXL |
135CM×180CM×92CM
|
280KG |
AC220V~
|
50/60
|
1500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
UPPER LAYERS: SMALL / MEDIUM PET SMALL / MEDIUM/BIG PET |
Feature
Animal intensive care unit is used for pet patients, critically ill, weak or postoperative body temperature recovery, infusion, oxygen delivery, atomization treatment, rescue recovery, hospitalization observation, etc.
Animal intensive care unit can also be used as aseptic and constant temperature culture for young pets.
The ICU has intelligent oxygen, temperature, humidity and carbon dioxide control systems, and intelligent animal information input.
Our animal intensive care unit has the function of air circulation system, which can adjust the temperature and humidity according to the cold and heat to ensure the best temperature and humidity level. With a 10-inch man-machine interface operating system, information can be easily exchanged.

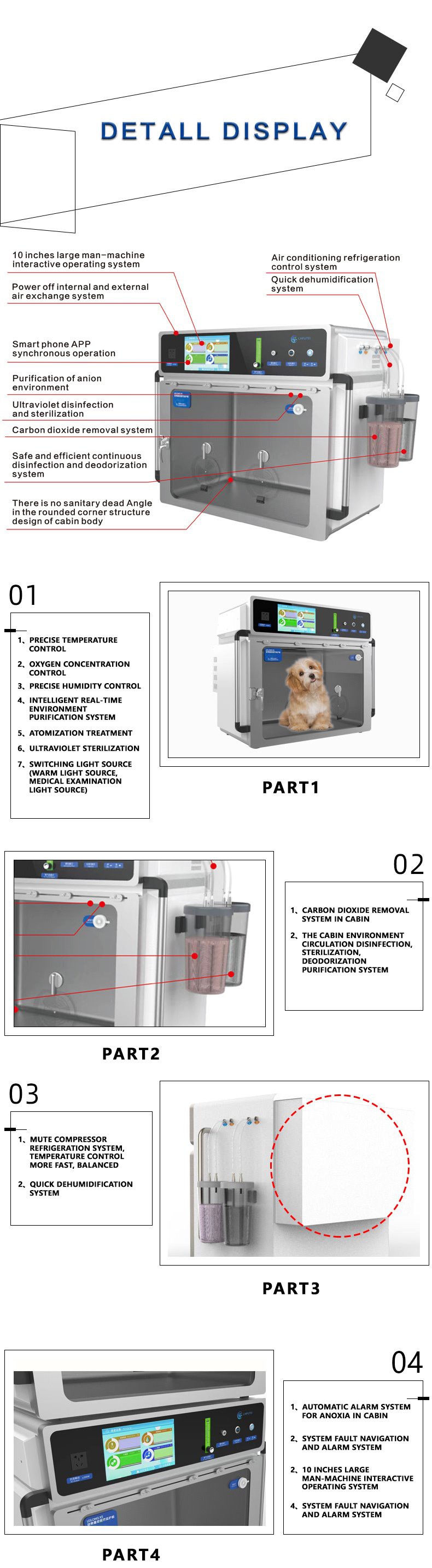

Funcation
1. 10-inch super large human-computer interactive operating system
2. Quick operating system upgrade port
3. Emergency air exchange system inside and outside during power outage
4. Ultra-fine atomizer quick connector
5. Switchable ten-level lighting and medical examination light sources
6. Smartphone app synchronous control
7. Negative ion environmental purification
8. Embedded removable internal circulation filter air duct
9. Embedded removable internal circulation filter air duct
10. Safe and efficient uninterrupted cabin environment disinfection, sterilization, deodorization and purification system
11. Carbon dioxide automatic removal system
12. Quickly operate safety doors and windows to stabilize the cabin environment
13. The cabin's rounded corner structure design has no sanitary dead corners.
14. Quick-connect oxygen input port, oxygen concentration can reach 50-60% in 15-20 minutes
15. Imported compressor air conditioning refrigeration temperature control system
16. Quick dehumidification system
17. PTC safety heating system
|
Product parameters |
|||
|
Product Model |
LEILONG XS |
Display |
10-inch super large touch screen |
|
Input voltage |
AC100V/220V~ |
Sterilization system |
External 24 hours non-stop disinfection and sterilization deodorant system |
|
Frequency |
50/60 Hz |
Maximum power consumption |
1.3KW |
|
Temperature control mode |
One chamber independent split cooling /PTC heating. |
Average power consumption |
0.5KW(Rooms 3-4 are used independently) |
|
Weight |
50 kg |
Power failure security |
Emergency ventilation hatch with programmed control |
|
Appearance size |
90CM×67CM×82CM |
Negative ion purification function |
(7.2X106PCS/cm3X4)High concentration anion |
|
Air purification function |
Ultraviolet germicidal lamp; |
Dehumidification indicators |
Automatic dehumidification system, standard humidity control at 40%, actual humidity control at < 50% |
|
Conditions of use |
-10℃~40℃Environment (indoor) |
Standard spare parts |
Various hanging racks and animal sleeping baskets (optional) |
|
Set temperature |
15-38℃The temperature control accuracy±0.5℃ |
Ultraviolet sterilization |
UVC band 253nm, efficient ultraviolet sterilization system |
|
Set oxygen concentration |
21℃-60℃Control precision±1% |
The fan control |
Automatic equalizing air supply |
|
Carbon dioxide concentration, monitoring and removal |
300-5000PPM,error±10PPM |
External humidifier |
Maximum atomization rate ≥ 0.2mL /min, fog particle (0.5-2um) noise ≤40dB(A)(optional) |
|
Alarm, warning |
Abnormal O2 concentration, temperature, sensor, CO2 concentration, and emergency hatch switch |
LED light |
There are two ways of light control: warm light is divided into ten levels and its strength can be adjusted, and cold light is used for medical examination |
CERTIFICATE
Our pet ICU has many patent certificates and CE certifications. It has high safety and reliability, provides a comfortable and effective recovery environment for pets.
We have obtained multiple patents, including invention patents, design patents, and utility model patents. In addition, our product has also passed CE certification.
PACKAGE
Our company is committed to providing customers with an attentive service experience. We cooperate with excellent logistics companies to ensure the safety and integrity of our products during transportation and efficiently deliver them to customers. In addition, we also provide the best after-sales service, with our customer service always ready to help customers solve problems.
