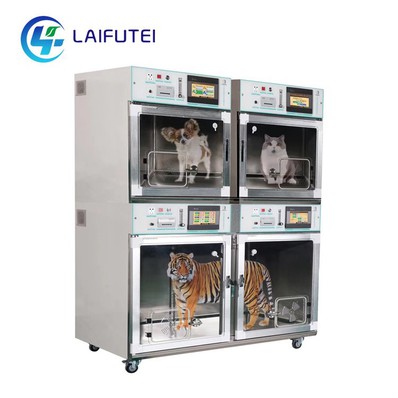

Pet Medical Monitoring Pod
Product Model: PAIM 5.0
Input voltage: AC100V/220V~
Frequency: 50/60 Hz
Temperature control mode: 4 chamber independent split cooling /PTC heating.
The lower 2 chambers can be controlled by one chamber
Description
WHY DO YOU NEED A PET INTELLIGENT MONITORING CABIN?
The purpose of our company is to provide the best treatment solution for sick animals, provide a perfect nursing environment and help pets recover. So we developed the pet medical monitoring pod.
The pet cabin can also be called a fully intelligent aerobic animal medical monitoring module.
The pet medical monitoring cabin is an animal intensive care unit with four independent control units. Temperature and humidity are controlled by compressor refrigeration, PTC heating and air circulation to make the temperature and humidity in the cabin balanced and comfortable.
In addition, it is equipped with a quick interface of atomization therapeutic instrument, which is very effective in treating respiratory diseases with high oxygen concentration. At the same time, the humanized human-computer interaction system brings great convenience to your operation. Of course, we have three kinds of light sources to switch, and the PET medical monitoring module is of great significance in clinical application.
FUNCTION
1.The four cabins are relatively independent structures.
2.Light color switch (warm light, white light, medical blue light).
3.Smart temperature detecting system.
4.Power outage automatic protection system.
5.Mute compressor refrigeration system for faster, balanced temperature control.
6.Smart moisture-removal system.
7.Smart CO2 removal system.
8.Oxygen concentration precision adjustment system.
9.Anion air purification system.
10.Built-in ultraviolet disinfection system.
11.Built-in atomizer.
12.Touch-type full microcomputer operating system.
13.Memory function data micro printer.
|
PRODUCT PARAMETERS |
|||
|
Product Model |
PAIM 5.0 |
display |
Type 8.4 W171XH128mm |
|
Input voltage |
AC100V/220V~ |
Touch screen |
Pointer film resistance type |
|
Frequency |
50/60 Hz |
Maximum power consumption |
1.3KW |
|
Temperature control mode |
4 chamber independent split cooling /PTC heating. The lower 2 chambers can be controlled by one chamber |
Average power consumption |
0.5KW(Rooms 3-4 are used independently) |
|
Weight |
297 kg |
Power failure security |
Emergency ventilation hatch with programmed control |
|
Appearance size |
140CM×88CM×190CM |
Negative ion purification function |
(7.2X106PCS/cm3X4)High concentration anion |
|
Air purification function |
Ultraviolet germicidal lamp; High concentration anion air purification |
microprinter |
Intelligent automatic timing printing system |
|
Conditions of use |
-10℃~40℃Environment (indoor) |
Standard spare parts |
Various hanging racks and animal sleeping baskets (optional) |
|
Set temperature |
15-38℃The temperature control accuracy±0.5℃ |
Ultraviolet sterilization |
UVC band 253nm, efficient ultraviolet sterilization system |
|
Set oxygen concentration |
21℃-60℃Control precision±1% |
Blue sleep lamp |
Blue 415 nmLED |
|
Carbon dioxide concentration, monitoring and removal |
300-5000PPM,error±10PPM Built-in medical CO2 high-efficiency purifying agent and automatic CO2 removal device |
External humidifier |
Maximum atomization rate ≥ 0.2mL /min, fog particle (0.5-2um) noise ≤40dB(A)(optional) |
|
Alarm, warning |
Abnormal O2 concentration, temperature, sensor, door switch, CO2 concentration, and emergency hatch switch |
LED light |
There are two ways of light control: warm light is divided into ten levels and its strength can be adjusted, and cold light is used for medical examination |
|
Dehumidification indicators |
Automatic dehumidification system, standard humidity control at 40%, actual humidity control at < 50% |
The fan control |
Automatic equalizing air supply |
|
Features/Products |
PAIM 5.0 |
An imported insulation cage products |
|
|
Capacity utilization |
Double deck with four separate medical pods, lower 2 rooms can be controlled by one room |
Two or three separate insulated compartments |
|
|
Temperature control system |
Inner wall wrapped 3D equalizing temperature system |
Top mounted temperature control system |
|
|
Oxygen supply system |
Central integrated high sensitivity oxygen sensor precise oxygen supply system |
Central oxygen supply system |
|
|
Lighting system |
Adaptive adjustment of light and warm light for medical examination |
floodlight |
|
|
Air purification |
High concentration of medical grade anion |
no |
|
|
Blu-ray medical |
415mm Blue ray medical system |
no |
|
|
security |
CO2 concentration detection ventilation adaptive, power off emergency ventilation system |
no |
|
|
The sterilization system |
Ultraviolet high efficiency sterilization system |
no |
|
|
Atomization treatment |
Built in high efficiency micro particle air compression animal medical atomization equipment |
no |
|
|
Remove CO2 |
Built-in medical CO2 efficient purifying agent and automatic CO2 removal device |
no |
|
|
Smart print |
Built-in intelligent timing printing core indicators timing function |
no |
|
|
Application upgrade |
Built-in preset program to upgrade bluetooth transmission module |
no |
|
|
Special customized |
The service can be customized according to customer requirements |
no |
|
COMMON APPLICATION SCENARIOS
The application scenarios of intelligent medical monitoring cabin for pets can include:
1, postoperative recovery
Most of the deaths of dogs and cats occur after operation, and the awakening time of hypothermia animals will be prolonged and the incidence will increase. So the heat preservation after operation is very important.
2, maternal and child care during delivery
Newborn dogs and cats don't have the ability to ask questions, so they can't control their body temperature. Too low questions will increase the mortality rate, and newborn animals need a warm and humid living environment. Mothers with dystocia also need special care.
3, emergency care of critical cases
Such as severe trauma, heatstroke, frostbite, frequent vomiting and diarrhea, pleural cavity disease, respiratory distress, poisoning, shock and so on.
CERTIFICATE
Our company has always attached importance to the construction and maintenance of the quality management system, and has also obtained certificate recognition in international quality and R&D certification.
We have CE certification, quality certification, R&D certification and so on, which provide a solid guarantee for your choice.
OUR TEAM
1. Scientific support
We have a huge R&D team to provide scientific support and data basis for your choice.
2. Accurate quotation
We provide accurate budget and provide our services to you in stages.
3, safe and reliable
After professional training and study, we have many years of experience to escort you.
4, high quality and reliability
We have strong equipment support to make the best choice for you.
OUR SERVICE
1. More professional services in the field of product export
2. Better manufacturing capability
3. A variety of payment methods are available.
4. High quality/safe materials/competitive prices
5. Can be ordered in small quantities
6. Quick response
7. Safer and faster transportation
8. OEM design for all customers
PACKAGING AND TRANSPORTATION
Packing: 1. One piece in a packing box.
2. There are no other packaging accessories in the conventional packaging.
3. Packaging required by customers can be provided.
By sea: by air, sea or express.
Delivery time: about 30~60 days after the order details and production confirmation.
FAQ
Q: Are you a trading company or a manufacturer?
Q: What certificates do you have?
Q: Do you have testing and auditing services?
Q: What is your transportation service?
Q: Can you provide FBA transportation service?
Q: When is your delivery time?
