Critical Care Veterinarian
Product Model: LEILONG SSXL
Input voltage: AC100V/220V~
Frequency: 50/60 Hz
Temperature control mode: Three big chambers independent split cooling /PTC heating.
Description
dESCRIPTION
Lorem ipsum dolor sit amet consectetur adipisicing elit.
product development
For small animals, mild symptoms can be life-threatening. Therefore, we pay special attention to pet medical care and have developed a variety of highly targeted products. Our basic design, the critical care unit LEILONG XS, encompasses essential medical care features such as temperature and humidity control, oxygen and carbon dioxide control, and environmental purification.
Building on the LEILONG XS, we developed the new intelligent animal veterinarian ICU, LEILONG SSXL, with a large cabin design. It is suitable for the medical care of animals of all sizes, playing a crucial role in their health and recovery, and allowing different animals to receive adjuvant treatment simultaneously. Our critical care Veterinarian ICU design consists of two small compartments and one large compartment, fully considering the needs of pets of different sizes and types. Whether it's cats, puppies, or large dogs, they can all be placed in the cabin for rescue and oxygen inhalation. This special design ensures that every pet requiring special care can receive the most comfortable service.
The best choice to improve the pet treatment environment
The Critical Care Veterinarian ICU can autonomously adjust the oxygen concentration to the optimal level required by pets, creating the best environment for their health. These functions are very useful for newborn cats and dogs, especially those born by cesarean section, as they are unable to regulate their body temperature and may lead to high mortality rates due to hypothermia.
In addition to oxygen supply, automatic adjustment of temperature and humidity is also crucial. The LAIFUTE ICU adopts an automatic temperature and humidity regulation system to ensure a stable indoor environment, providing pets with a warm and comfortable resting space under all circumstances.
Another important function of our ICU is to pay attention to the balance with the external environment. Small animals in overly enclosed environments may cause pets to become restless, experience nerve stress reactions, and even experience breathing difficulties, acid-base poisoning, and death.
To resolve this issue, we have installed transparent windows. This not only allows for a stable, internal environment within the cabin but also allows the pets to observe outside surroundings and relieves stress.
DO YOU UNDERSTAND THE 13 FEATURES?
1.This high-tech treatment cabin is multifunctional, offering precise environmental control along with an intelligent purification and alarm system. This ensures both the safety and efficiency of the treatment process.
2.The treatment cabin features an accurate temperature control system, maintaining the ideal temperature for poultry and pets.
3.The oxygen concentration control function is crucial for pets requiring additional oxygen support. High-precision monitoring allows the system to automatically adjust and maintain the necessary oxygen concentration, ensuring smooth breathing for sick animals.
4.Accurate humidity control is essential. Proper humidity contributes to the comfort of the animal's respiratory system and enhances treatment effectiveness.
5.The intelligent real-time environment purification system provides clean air within the cabin, effectively filtering out particles and bacteria that may cause discomfort.
6.Nebulization therapy is another highlight. Medication is delivered to the pet's respiratory tract through fine mist, making it milder and easier to absorb.
7.The UV sterilization function can kill potential pathogens, protecting animals from infection.
8.The treatment cabin is equipped with a carbon dioxide automatic alarm system. If the oxygen concentration falls below the standard or the carbon dioxide concentration rises too high, an alarm will sound immediately, prompting safety measures. The carbon dioxide removal system maintains fresh air within the cabin.
9.In case of a malfunction, the navigation and alarm system immediately guides operators to take the correct response measures, reducing the risk of accidents.
10.The cabin environment includes a circulating disinfection, sterilization, deodorization, and purification system to ensure continuous cleanliness and pet health.
11.To meet different needs, the ICU cabin has switchable light sources, including soft warm lighting and special medical examination lighting, balancing comfort and practicality.
12.A silent compressor refrigeration system provides faster and more uniform temperature control, avoiding discomfort from temperature differences.
13.A fast oxygen input port can quickly increase the oxygen concentration to 30-50%, which is crucial for animals in urgent need of oxygen support during the rescue process.
SCOPE OF APPLICATION
1. The hospital has the highest space utilization rate and the most available cabins for the same usable area;
2. Suitable for all animal hospitals and clinics;
3. It can accommodate the largest objects, has the highest adaptability, and can adapt to pets of various sizes;
4. Independent intelligent control of the upper and lower cabins
ICU host diagram
1：Three in one socket 2：Electrical Control Unit 3：Operation display 4：Inner liner Components 5：Refrigeration Components
6：External socket 7：Exchanger

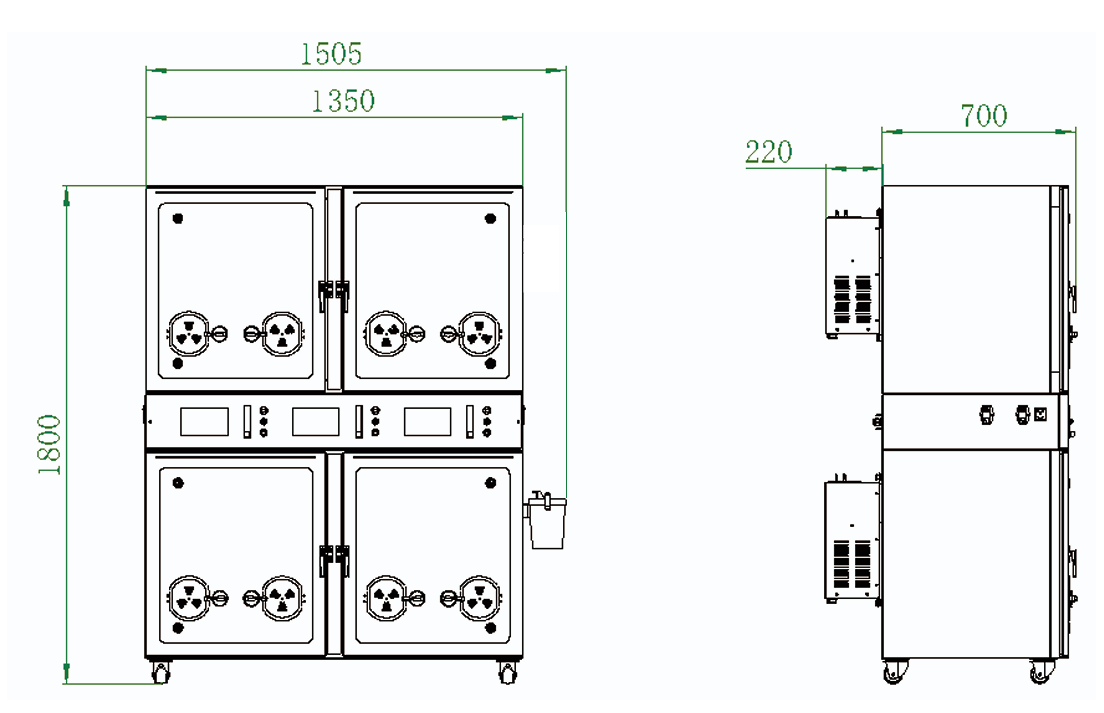

ICU size chart
| MODEL | SIZE | WEIGHT | INPUT VOLTAGE | HZ | RARED POWER |
OPERATION TEMPERATURE
|
RALATIVE HUMIDITY | AIR PRESSURE | USE |
| LEILONG XS |
105CM×75CM×82CM
|
90KG |
AC220V~
|
50/60
|
500W
|
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM PET |
| LEILONG SE |
98.5CM×78.5CM×74.5CM
|
80KG |
AC220V~
|
50/60
|
500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM PET |
| LEILONG XL |
135CM×105CM×92CM
|
150KG |
AC220V~
|
50/60
|
500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM/BIG PET |
| LEILONG LXL |
135CM×180CM×92CM
|
250KG |
AC220V~
|
50/60
|
1000W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM/BIG PET |
| LEILONG SSXL |
135CM×180CM×92CM
|
280KG |
AC220V~
|
50/60
|
1500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
UPPER LAYERS: SMALL / MEDIUM PET SMALL / MEDIUM/BIG PET |
STEPS
Step 1: Start the interface and press the on/off button. Press the power button and wait for the screen to light up and display the initial startup screen. After booting up, you will see the main interface, which usually displays basic information such as the current system status and time.
Step 2 is the function selection process. Users can enter the function settings interface by touching the screen in the menu on the main interface. These functions may include heart rate monitoring, respiratory rate detection, temperature monitoring, etc. Doctors should choose appropriate monitoring plans based on the specific needs of pets.
Step 3 is to set the parameters. After selecting the corresponding function, users need to input or adjust parameters according to the actual situation of the pet. For example, setting a normal range heart rate value in heart rate monitoring, or setting a temperature alarm threshold in body temperature monitoring. The correct parameter settings can enable the device to issue an alarm in a timely manner in case of abnormal pet conditions, in order to take countermeasures.
Opening specific steps is usually very intuitive, and most modern devices are designed to be user-friendly, with graphical icons and clear instructions to guide users through the operation. For example, to start heart rate monitoring, users may need to click the "Start Monitoring" button; To pause, click the "Pause" icon. After each step, a prompt usually appears on the screen explaining what to do next or displaying the current status of the work. When there is a malfunction or you do not know how to operate, please refer to the operation guide for the corresponding handling method. When the device detects that a pet's vital signs exceed the preset normal range, it will sound an alarm. At this point, users should quickly check the actual situation of their pets and decide whether to urgently contact a veterinarian or take other emergency measures based on the situation. It is important for users to be familiar with common emergency procedures and techniques before using such devices to ensure quick and effective response in emergency situations, so we need to receive training on their use.
Although there are many steps in the operation guide for the pet monitoring cabin, it follows a logical sequence from startup, function selection, parameter setting to specific operation and emergency response. Understanding and mastering these steps is crucial to ensure the safety and health of your pet, which can provide more professional and caring care for our pet companions.
Regarding whether it is a literal translation from Chinese to English, without the original text in Chinese, it's challenging to determine definitively. However, the passage reads naturally and coherently in English, suggesting it's well-written and likely not a direct translation.
|
Product parameters |
|||
|
Product Model |
LEILONG SSXL |
Display |
7-inch super large touch screen |
|
Input voltage |
AC100V/220V~ |
Sterilization system |
External 24 hours non-stop disinfection and sterilization deodorant system |
|
Frequency |
50/60 Hz |
Maximum power consumption |
1.3KW |
|
Temperature control mode |
Three big chambers independent split cooling /PTC heating. |
Average power consumption |
0.5KW(Rooms 3-4 are used independently) |
|
Weight |
280 kg |
Power failure security |
Emergency ventilation hatch with programmed control |
|
Appearance size |
135CM×180CM×92CM |
Negative ion purification function |
(7.2X106PCS/cm3X4)High concentration anion |
|
Air purification function |
Ultraviolet germicidal lamp; |
Dehumidification indicators |
Automatic dehumidification system, standard humidity control at 40%, actual humidity control at < 50% |
|
Conditions of use |
-10℃~40℃Environment (indoor) |
Standard spare parts |
Various hanging racks and animal sleeping baskets (optional) |
|
Set temperature |
15-40℃The temperature control accuracy±0.5℃ |
Ultraviolet sterilization |
UVC band 253nm, efficient ultraviolet sterilization system |
|
Set oxygen concentration |
21℃-65℃Control precision±1% |
The fan control |
Automatic equalizing air supply |
|
Carbon dioxide concentration, monitoring and removal |
2000-5000PPM,error±10PPM |
External humidifier |
Maximum atomization rate ≥ 0.2mL /min, fog particle (0.5-2um) noise ≤40dB(A)(optional) |
|
Alarm, warning |
Abnormal O2 concentration, temperature, sensor, CO2 concentration, and emergency hatch switch |
LED light |
There are two ways of light control: warm light is divided into ten levels and its strength can be adjusted, and cold light is used for medical examination |
CLEANING
The power supply of the equipment must be cut off before cleaning. Use an ordinary cotton cloth dipped in soapy water to wipe the product shell and quick connector for cleaning. Note that the liquid should not enter the equipment and cause mechanical damage. The detergent should be removed after cleaning. Do not leave the detergent on the surface; dry it with a clean, dry, soft cloth. Do not use hard materials for cleaning.
DISINFECTION
It is recommended that users use 75% alcohol disinfectant wipes or use 70% to 80% (volume ratio) ethanol disinfectant to soak a clean, dry gauze and twist it. Wipe the part of the surface that needs to be disinfected twice, and leave it for 3 minutes for the effect. Air-dry naturally or dry the residual disinfectant with a clean, dry soft cloth. When there is debris on the surface, the pollutants should be removed first, and then cleaned and disinfected. There should be no open fire during use because oxygen is flammable.
EXHIBITION
