Icu For Dogs
Animals that suffer from heat stroke often have undergone intense exercise or have just been exposed to high temperatures and humidity. The body temperature is not necessarily high, but can be normal or hypothermic. Other symptoms may include severe depression, weakness, panting, tachycardia,...
Description
The Pet Intelligent ICU SE Edition is an auxiliary care device that integrates multiple functions. The comprehensiveness of ICU functions is also important for the medical care of pets. The intelligent pet medical care cabin can not only monitor and restore pet body temperature, allowing dogs and cats to live in the most suitable environment, but also provide infusion, oxygen inhalation, and nebulization treatments. ICU ensures comprehensive recovery of pet health.
The ICU monitoring cabin is particularly effective for the treatment of heart disease, pulmonary edema, and internal medicine in dogs. Real-time monitoring of the cabin environment data can be achieved through the display screen, allowing operators to more accurately control every detail. Its structural design is enclosed and rounded, providing assurance for a stable cabin environment and animal protection. The stainless-steel inner lining is sturdy, offering strong stability while also being easy to clean and maintain. Additionally, navigating the operating system is through a touch screen, making the device intuitive and easy to use, thus optimizing the user experience.
BASIC KNOWLEDGE
The 7-inch LCD screen provides a very comfortable visual presentation. The interface layout is clear, and the function buttons are set appropriately, allowing users to quickly find the functions they need without having to go through cumbersome operation manuals or worrying about accidentally touching them, which may lead to misoperation. In addition, the ICU, suitable for pets such as dogs and cats, has a built-in monitoring system for key indicators such as temperature, humidity, and oxygen, which can accurately reflect the actual situation of the current environment in real time and provide users with timely and effective data support.
Our intelligent pet ICU monitoring cabin has been widely used in pet hospitals, playing an important role in emergency treatment and postoperative rehabilitation care of critically ill animals.
EFFECT
In the postoperative recovery stage, the ICU monitoring cabin for dogs and cats provides continuous and stable monitoring and care for patients, ensuring the smooth progress of the rehabilitation process. In addition, this product is particularly suitable for the care of young pets with strict environmental temperature requirements. Its constant temperature cultivation function can provide the most suitable living environment, ensuring the healthy growth of young pets.
The smart ICU SE Edition dog monitoring and care cabin is an intelligent monitoring device designed specifically for pets. It can monitor the vital signs of pets in real-time, such as heart rate, respiratory rate, etc. Once an abnormality is detected, the device will automatically adjust the cabin environment to obtain optimal treatment.
TECHNICAL SPECIFICATIONS
Input voltage: AC220V~
Frequency: 50/60Hz
Rated power：500W
Weight：80KG
Dimension of the appearance:98.5CM*78.5CM*74.5CM
REQUIREMENTS OF WORKING ENVIRONMENT
Operation temperature:10℃-40℃
Relative humidity:≤60%RH
Atmospheric pressure:700hPa~1060hPa
APPLICATION SCOPE
This ICU is suitable for sick, critically ill, or weak animals. It can also be used for postoperative temperature recovery, infusion, oxygen therapy, nebulization treatment, rescue recovery, observation, etc. Additionally, it can be utilized for sterile and constant temperature cultivation of young pets. When in use, doctors must not leave it unattended for an extended period and should only use it for animal medical purposes. The company does not take responsibility for any malfunctions, repairs, or accidents resulting from improper usage.
STRUCTURAL COMPOSITION
This product mainly consists of stainless steel liner, 7-inch display screen, motherboard, atomizer cup, refrigeration components, temperature, humidity, oxygen monitoring system and other components
Schematic Diagram Of The Product
1：Stainless Steel Liner 2：operation panel 3：Tempered glass door 4：Visitation Window 5：Electrical Control Unit 6：Refrigeration Components 7：Infusion Support

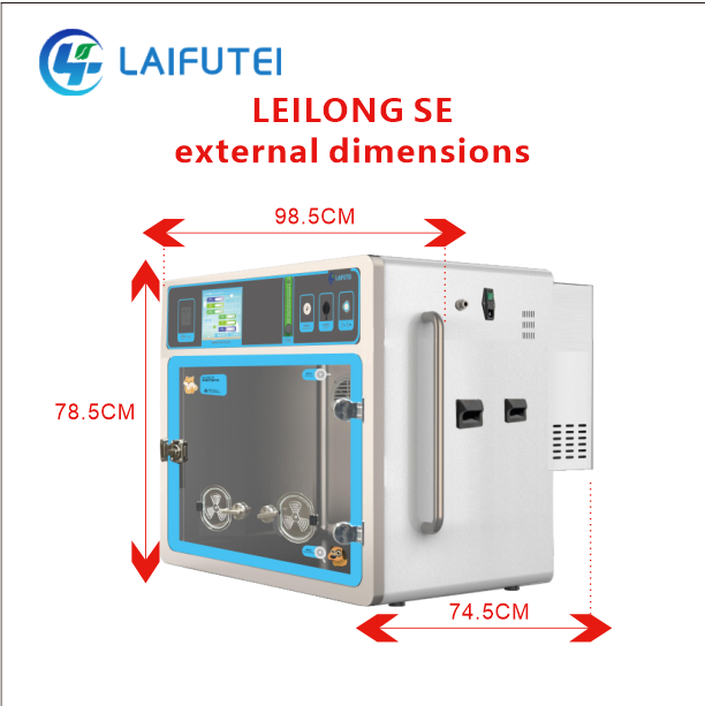

PRODUCT SIZE
|
Product parameters |
|||
|
Product Model |
LEILONG SE |
Display Touch screen |
10-inch super large touch screen |
|
Input voltage |
AC100V/220V~ |
Sterilization system |
External 24 hours non-stop disinfection and sterilization deodorant system |
|
Frequency |
50/60 Hz |
Maximum power consumption |
1.3KW |
|
Temperature control mode |
one chamber independent split cooling /PTC heating. |
Average power consumption |
0.5KW(Rooms 3-4 are used independently) |
|
Weight |
80 kg |
Power failure security |
Emergency ventilation hatch with programmed control |
|
Appearance size |
98.5CM×78.5CM×74.5CM |
Negative ion purification function |
(7.2X106PCS/cm3X4)High concentration anion |
|
Air purification function |
Ultraviolet germicidal lamp; High concentration anion air purification |
Dehumidification indicators |
Automatic dehumidification system, standard humidity control at 40%, actual humidity control at < 50% |
|
Conditions of use |
-10℃~40℃Environment (indoor) |
Standard spare parts |
Various hanging racks and animal sleeping baskets (optional) |
|
Set temperature |
15-38℃The temperature control accuracy±0.5℃ |
Ultraviolet sterilization |
UVC band 253nm, efficient ultraviolet sterilization system |
|
Set oxygen concentration |
21℃-60℃Control precision±1% |
The fan control |
Automatic equalizing air supply |
|
Carbon dioxide concentration, monitoring and removal |
300-5000PPM,error±10PPM Built-in medical CO2 high-efficiency purifying agent and automatic CO2 removal device |
External humidifier |
Maximum atomization rate ≥ 0.2mL /min, fog particle (0.5-2um) noise ≤40dB(A)(optional) |
|
Alarm, warning |
Abnormal O2 concentration, temperature, sensor, CO2 concentration, and emergency hatch switch |
LED light |
There are two ways of light control: warm light is divided into ten levels and its strength can be adjusted, and cold light is used for medical examination |
FUNCTION
1,Quick operating system upgrade port
2,7 inches touch screen operating system
3,Exchange system for internal and external air during power outage
4,Animal information input
5,Switchable ten level lighting and medical examination light source
6,purify environment by anion
7,UV sterilizer inside
8,PTC secure heating system
9,Embedded detachable internal circulation filter air duct
10,Quick operation window,stable warehouse environment
11,curved structure design of the cabin, without sanitary dead corners
12,Micro atomizer quick connector
13,Fixed bracket for infusion pump
14,Quick connect oxygen input port,oxygen concentration can reach 50-60% within 15-20 minutes
15,Emergency exchange system for internal and external air during power outage
16,Circulating refrigeration system
17,Quick dehumidification system
MAINTENANCE AND INSPECTION
items of the inspection
Regularly inspect the intake filter, dust blockage can reduce oxygen output and equipment lifespan.
Regularly inspect the surrounding environment of the equipment to prevent excessive dust from entering the equipment, blocking the intake filter, and causing equipment damage;
fuse replacement
The fuse holder of the device is located below the power switch. You can directly remove the faulty fuse and replace it with the new fuses, then press in the power cover.
motor pump replacement
After running the equipment for 800-2000 hours, the motor pump may fail. You can contact the agent or replace it yourself.
First, remove the four screws on the left board and remove the left board. Then remove the faulty motor and unplug the connector (be careful not to unplug the wire, it is best to use sharp-nosed pliers at the joint) and replace the good motor.
QUALITY CONTROL
We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
OUR SERVICE
1.More Professional service
2.Better manufacture ability
3.Various payment term to choose
4.High quality/Safe material/Competitive price
5.Small order available
6.Quickly response
7.More safe and fast transport
8.OEM design for all customers
Our production and equipment
Our free service hotline:+8613248582939
7
years
We have been working in the industry since 2017
10
certificates
We have obtained most of the professional certificates in the industry and insist on international standards of production.
10
awards
We have won a lot of awards for strong creativity
the only place you'll find outside the home
large enterprise scale
Efficient and precise processing and testing equipemnt
standardized production
Starting from the clinical needs of the veterinary medical industry, we are committed to developing exclusive equipment for the intelligent veterinary medical field. The founder of the company, Wu Yufu, is a nationally registered veterinarian with nearly 20 years of animal clinical experience. After years of accumulation, we have developed a series of medical products such as oxygen supply and pet ICU.
