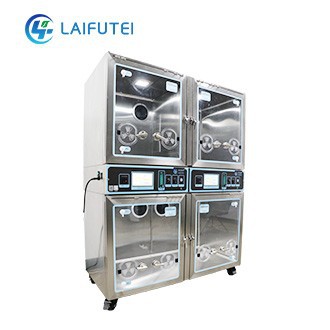

PET ICU Monitoring Cabin
Product Model: LEILONG LXL
Input voltage: AC100V/220V~
Frequency: 50/60 Hz
Temperature control mode: Two big chambers independent split cooling /PTC heating.
Description

PRODUCT DESCRIPTION
With the development of society, many families now have small pets. In pet hospitals, an increasing array of equipment and instruments are emerging, including our pet ICU monitoring cabin. Our products can significantly aid in pets' health recovery. Our ICU plays an indispensable role when pets fall ill, undergo surgery, or require special care.
The PET ICU Monitoring Cabin is primarily suitable for pet patients with critical illness, weakness, or postoperative temperature recovery. It can also be used for pet infusion, oxygen supply, nebulization treatment, rescue and rehabilitation, hospitalization, etc. Additionally, the device can be utilized for sterile and constant temperature incubation of young pets, making it highly comprehensive.
NEXT, LET'S TALK ABOUT SEVERAL OBVIOUS CHARACTERISTICS OF THE PET ICU MONITORING CABIN.
Firstly, our product structure is safe and reliable. The cabin consists of a stainless-steel liner, increasing durability and making it easy to clean and disinfect. This ensures a hygienic environment for pet treatment. The round design of the cabin also prevents difficulties in the cleaning process by avoiding dead corners.
Secondly, this type of PET ICU monitoring cabin is equipped with a 7-inch touch screen as the operating interface, which can be operated through simple functional touches and is user-friendly even for first-time users. It can control the condition of animals in three cabins, allowing medical staff to observe the status of pets in real-time and adjust treatment plans accordingly.
Thirdly, our main control system is the core control unit of the entire equipment, responsible for processing various sensor signals and data. We can observe data such as temperature, humidity, carbon dioxide, and oxygen. By setting these data settings in advance, we can help pets adjust to their optimal state.
Fourthly, we offer a variety of pet ICU accessories to choose from, including infusion pumps and nebulization cups for infusion and nebulization treatment. These accessories can convert drugs into small particles, making it easier for pets to absorb and improving treatment effectiveness. Additionally, air conditioning refrigeration components can adjust the temperature inside the cabin according to the needs of pets, ensuring comfortable recovery.
Finally, the pet ICU monitoring cabin has a wide range of applications. It is suitable not only for common household pets like dogs and cats but also provides a therapeutic environment for birds, reptiles, and other small mammals. The appearance of the cabin significantly increases the survival rate of pets in critical health and can reduce the time needed for recovery.
It covers over 90% of hospitalized observation cases and offers comprehensive functionality and superior performance compared to similar products. It is suitable for the medical care of animals with heart disease, lung/respiratory system diseases, liver and kidney diseases, neurological diseases, brain diseases, etc., as well as care for young pets, elderly pets, postoperative care, and first aid/vital sign maintenance.
Furthermore, the equipment compartment has undergone noise reduction treatment, ensuring a truly cat-friendly ICU with a minimum cabin noise of 45 decibels.
BASIC FEATURES
1. Easy-to-operate touch screen
Adopting a simple and easy-to-understand interface, you can directly operate and set the corresponding parameters
2. Easy-to-use small cabin door design, which can be opened and closed for ventilation, making it convenient to take care of pets in the cabin.
3. Easy-to-hold handle to lock the hatch
4. The convenient sliding hook can be used to hang door curtains and infusion bags
5. The door edge design is highly flexible with the sealing strip and does not affect the use of connections such as drips and pipes.
6. The cabin is equipped with separately removable partitions that can accommodate large dogs.
ICU host diagram

1:Three in one socket 2:Electrical Control Unit 3:Operation display 4:Inner liner Components 5:Refrigeration Components
6:External socket 7:Exchanger
ICU size chart

| MODEL | SIZE | WEIGHT | INPUT VOLTAGE | HZ | RARED POWER |
OPERATION TEMPERATURE
|
RALATIVE HUMIDITY | AIR PRESSURE | USE |
| LEILONG XS |
105CM×75CM×82CM
|
90KG |
AC220V~
|
50/60
|
500W
|
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM PET |
| LEILONG SE |
98.5CM×78.5CM×74.5CM
|
80KG |
AC220V~
|
50/60
|
500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM PET |
| LEILONG XL |
135CM×105CM×92CM
|
150KG |
AC220V~
|
50/60
|
500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM/BIG PET |
| LEILONG LXL |
135CM×180CM×92CM
|
250KG |
AC220V~
|
50/60
|
1000W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
SMALL / MEDIUM/BIG PET |
| LEILONG SSXL |
135CM×180CM×92CM
|
280KG |
AC220V~
|
50/60
|
1500W |
10℃-40℃
|
≤60%RH
|
700~1060hPa
|
UPPER LAYERS: SMALL / MEDIUM PET SMALL / MEDIUM/BIG PET |
SCENES TO BE USED
The Pet Intensive Medical Monitoring Cabin is the main product developed by our company. We have designed a variety of models to choose from based on the pet's size and treatment efficiency. The Pet ICU Monitoring Cabin is a device developed to provide comprehensive care for pet patients, including those who are critical, weak, or in need of postoperative body temperature recovery, infusion, oxygen supply, atomization treatment, rescue recovery, hospitalization observation, etc. Additionally, it can serve as an ideal oxygen supply machine for sterile and constant-temperature culture of young pets. Our products protect pets' health with their excellent functionality and humanized design.
|
Product parameters |
|||
|
Product Model |
LEILONG LXL |
Display |
7-inch super large touch screen |
|
Input voltage |
AC100V/220V~ |
Sterilization system |
External 24 hours non-stop disinfection and sterilization deodorant system |
|
Frequency |
50/60 Hz |
Maximum power consumption |
1.3KW |
|
Temperature control mode |
Two big chambers independent split cooling /PTC heating. |
Average power consumption |
0.5KW(Rooms 3-4 are used independently) |
|
Weight |
250 kg |
Power failure security |
Emergency ventilation hatch with programmed control |
|
Appearance size |
135CM×180CM×92CM |
Negative ion purification function |
(7.2X106PCS/cm3X4)High concentration anion |
|
Air purification function |
Ultraviolet germicidal lamp; |
Dehumidification indicators |
Automatic dehumidification system, standard humidity control at 40%, actual humidity control at < 50% |
|
Conditions of use |
-10℃~40℃Environment (indoor) |
Standard spare parts |
Various hanging racks and animal sleeping baskets (optional) |
|
Set temperature |
15-40℃The temperature control accuracy±0.5℃ |
Ultraviolet sterilization |
UVC band 253nm, efficient ultraviolet sterilization system |
|
Set oxygen concentration |
21℃-65℃Control precision±1% |
The fan control |
Automatic equalizing air supply |
|
Carbon dioxide concentration, monitoring and removal |
2000-5000PPM,error±10PPM |
External humidifier |
Maximum atomization rate ≥ 0.2mL /min, fog particle (0.5-2um) noise ≤40dB(A)(optional) |
|
Alarm, warning |
Abnormal O2 concentration, temperature, sensor, CO2 concentration, and emergency hatch switch |
LED light |
There are two ways of light control: warm light is divided into ten levels and its strength can be adjusted, and cold light is used for medical examination |

ADVANTAGE
1,7 inches touch screen operating system
2,Quick operating system upgrade port
3,Exchange system for internal and external air during power outage
4,Micro atomizer quick connector
5,Switchable ten level lighting and medical examination light source
6,Animal information input
7,Fixed bracket for infusion pump
8,Purigy environment by anion
9,Embedded detachable internal circulation filter air duct
10,Uv sterilizer inside
11,Safe and efficient continous disinfecting and deodorizating system
12,Carbon dioxide automatic removal system
13,Quick operation window, stable warehouse environment
14,Curved structure design of the cabin, without sanitary dead corners
15,Quick connect oxygen input port, oxygen concentration can reach 50-60%
16,Imported compressor air conditioning refrigeration temperature control system
17,Quick dehumidification system
18,PTC secure heating system
